House Plan 74811
A Traditional Meets Craftsman House Plan with a Perfect Master Suite
sq ft
2000beds
3baths
3.5bays
3width
63'depth
63'
click for more images
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Plan Pricing
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 2000 sq ft |
| Main Living Area: | 2000 sq ft |
| Bonus Area: | 503 sq ft |
| Unfinished Basement Area: | 2000 sq ft |
| Garage Area: | 715 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 3 |
| Foundation Types: | Basement - * $368.75 Total Living Area may increase with Basement Foundation option. Crawlspace - * $368.75 Slab |
| Exterior Walls: | 2x4 2x6 - * $368.75 |
| House Width: | 63' |
| House Depth: | 62'8 |
| Number of Stories: | 1 |
| Bedrooms: | 3 |
| Full Baths: | 3 |
| Half Baths: | 1 |
| Max Ridge Height: | 23'6 from Front Door Floor Level |
| Primary Roof Pitch: | 8:12 |
| Roof Framing: | Stick |
| Porch: | 300 sq ft |
| Deck: | 108 sq ft |
| FirePlace: | Yes |
| 1st Floor Master: | Yes |
| Main Ceiling Height: | 9' |
| Upper Ceiling Height: | 8' |
Plan Description
A Traditional Meets Craftsman House Plan with a Perfect Master Suite
We've integrated our customer's most requested features into a mid-sized ranch in the creation of this attractive new design. The traditional siding and stone exterior is accented with a "Palladian" window, multi-level trim and an inviting front porch. A flex room, an exquisite master suite, a 3-car garage, and a large screened porch are sure to make this 2000 square foot home irresistible.What's Included?
Detailed Floor Plans: show the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc., of each level of the house. In some cases, the door and window dimensions and/or stair details may be on a separate page.
Exterior Elevations: show the front, rear and sides of the house, including exterior materials, details and measurements.
Wall Sections and/or Cross Sections: show details of the house as though it were cut in slices from the roof to the foundation. The cross sections specify the home's construction, insulation, flooring and roofing details.
Roof Details: show slope, pitch and location of dormers, gables and other roof elements, including clerestory windows and skylights. These details may be shown on the elevation sheet or on a s eparate diagram. Note: If trusses are used, we suggest using a local truss manufacturer to design your trusses to comply with your local codes and regulations.
Standard Construction Details: various details related to beam support, floor construction, connections, and roofing options.
The following may also be included:
Interior Elevations: show the specific details of cabinets (kitchen, bathroom, and utility room), fireplaces, built-in units, and other special interior features, depending on the nature and complexity of the item. Note: To save money and to accommodate your own style and taste, we suggest contacting local cabinet and fireplace distributors for sizes and styles.
Schematic Electrical Layouts: show the suggested locations for switches, fixtures and outlets. These details may be shown on the floor plan or on a separate diagram.
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
A: Plans include complete framing plans for the floor, beams, and rafters. The assumed design criteria currently is 30 lbs/sq.ft. However, the rafters should be sized per local snow load.
A: The electrical plans do include the outlets as well.
A: That type of information would come from energy calculations and a local licensed HERS rater that can also do a ERI - Energy Rating Index Regards, Eric
A: Room sizes reflect interior room sizes. Plans are drawn to IRC code. Regards, Eric
A: Roof is duel pitched: 8:12 FRONT TO BACK 10:12 LEFT AND RIGHT
A: Total under roof is 3623 sq.ft. 16” Overhangs
A: I regret that there are no photos available for this design.
A: Electrical entry point is per site and where it comes up to the house. Mechanicals would typically be located in the attic or garage if no mechanical closet is designated.
A: This can be done in the field.
A: Plans do not necessarily need to be modified for façade changes. However, they may need updating if the design needs approval from a local architectural control committee for the neighborhood.
A: Current garage adds 736 sq.ft.
A: No cabinets in the laundry. They can add some upper cabinets above the washer and dryer.
A: Material list will show the sq.ft. coverage needed for the brick. That number can then be used to determine number of bricks based on the chosen style, and the number of bricks required per sq.ft. required for coverage for that style of brick.
And yes, the number of, and size of, each window is shown on the material list.
A: 2010
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
click image to enlargeInfo Brochure
Photographs may show modified designs.
Elevation

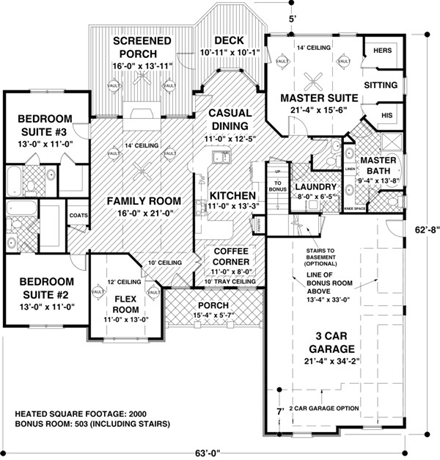

Level One
Quick Specs
2000 Total Living Area2000 Main Level
503 Bonus Area
3 Bedrooms
3 Full Baths, 1 Half Baths
3 Car Garage
63' W x 62'8 D
Quick Specs
2000 Total Living Area503 Bonus Area
3 Bedrooms
3 Full Baths, 1 Half Baths
3 Car Garage
63' W x 62'8 D
Pricing
PDF File: $1,295.005 Sets: $1,345.00
5 Sets plus PDF File: $1,550.00
8 Sets: $1,395.00
CAD File: $1,795.00
more info
Rear Elevation
