Turn OFF Image Gallery

Add to cart

Plan Pricing from $1,725.00

Plan Pricing

PDF File: $1,725.00
5 Sets: $1,890.00
5 Sets plus PDF File: $1,961.00
CAD File: $2,275.00
Single Build License issued on CAD File orders.
Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
Materials List: $368.75
Right Reading Reverse: $200.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional Sets: $35.00

Additional Notes

Basement Height: 9'

Materials List may take 3-5 weeks to fulfill depending on availability.

Available Foundation Types:

Basement : $450.00
May require additional drawing time, please call to confirm before ordering.
Total Living Area may increase with Basement Foundation option.
Crawlspace : $300.00
May require additional drawing time, please call to confirm before ordering.
Slab : $300.00
May require additional drawing time, please call to confirm before ordering.
Walkout Basement : No Additional Fee
Total Living Area may increase with Basement Foundation option.

Available Exterior Wall Types:

2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Total Living Area:	2924 sq ft
Lower Living Area:	1462 sq ft
Main Living Area:	1462 sq ft
Garage Type:	None
See our garage plan collection. If you order a house and garage plan at the same time, you will get 10% off your total order amount.
Foundation Types:	Basement - * $450.00 Total Living Area may increase with Basement Foundation option. Crawlspace - * $300.00 Slab - * $300.00 Walkout Basement
Exterior Walls:	2x6
House Width:	48'6
House Depth:	54'0
Number of Stories:	1
Bedrooms:	3
Full Baths:	2
Half Baths:	1
Max Ridge Height:	19'1 from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Load:	10 psf
Roof Framing:	Stick
Porch:	1269 sq ft
FirePlace:	Yes
1st Floor Master:	Yes
Main Ceiling Height:	9'

* May require additional drawing time.

Special Features:

Deck or Patio
Entertaining Space
Front Porch
Open Floor Plan
Pantry
Rear Porch
Storage Space

Plan Description

Bungalow House Plan With Finished Walkout Basement

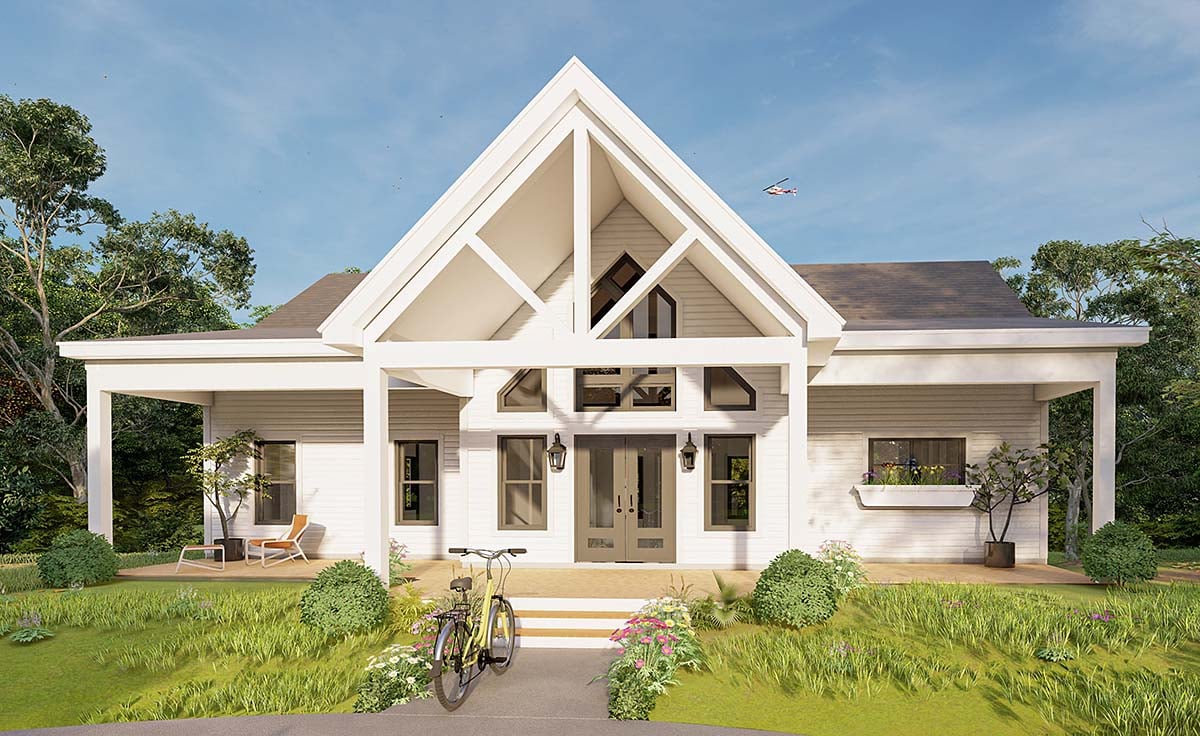

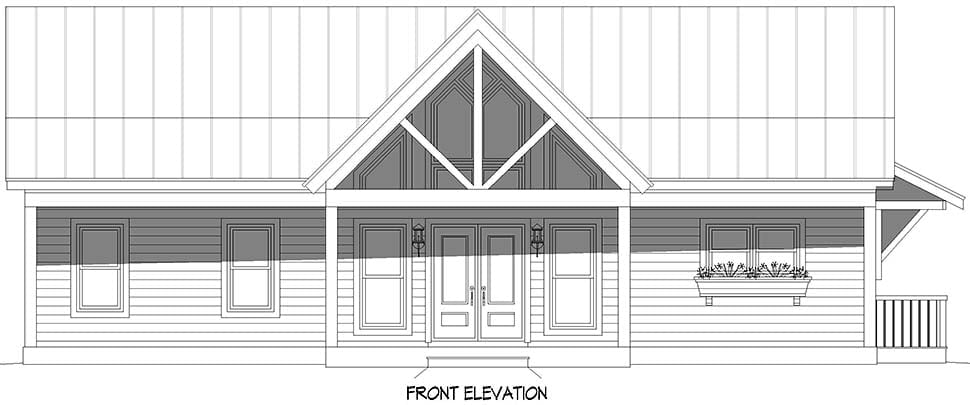

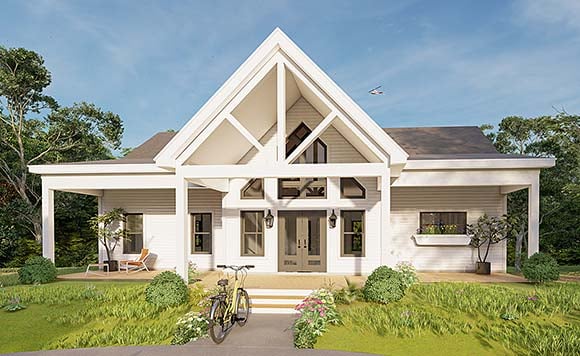

Bungalow House Plan 84816 is bursting with beauty from first glance! First to arrest your attention is the vaulted front porch with thick beams in a creamy antique-white paint color. Choose a complementing brown tone for the double front door and for the window frames above. The front porch is 17' wide by 10' deep, and it's flanked by two covered decks which are 14' x 8' and 17' x 8'. In total, this stunning new house plan offers 2,924 square feet of living space with 3 bedrooms and 2.5 bathrooms. Breaking that figure down, we have 1,462 sq. ft. on the main floor and 1,462 sq. ft. on the finished walkout basement level.

Bungalow House Plan With Tons of Outdoor Living Space

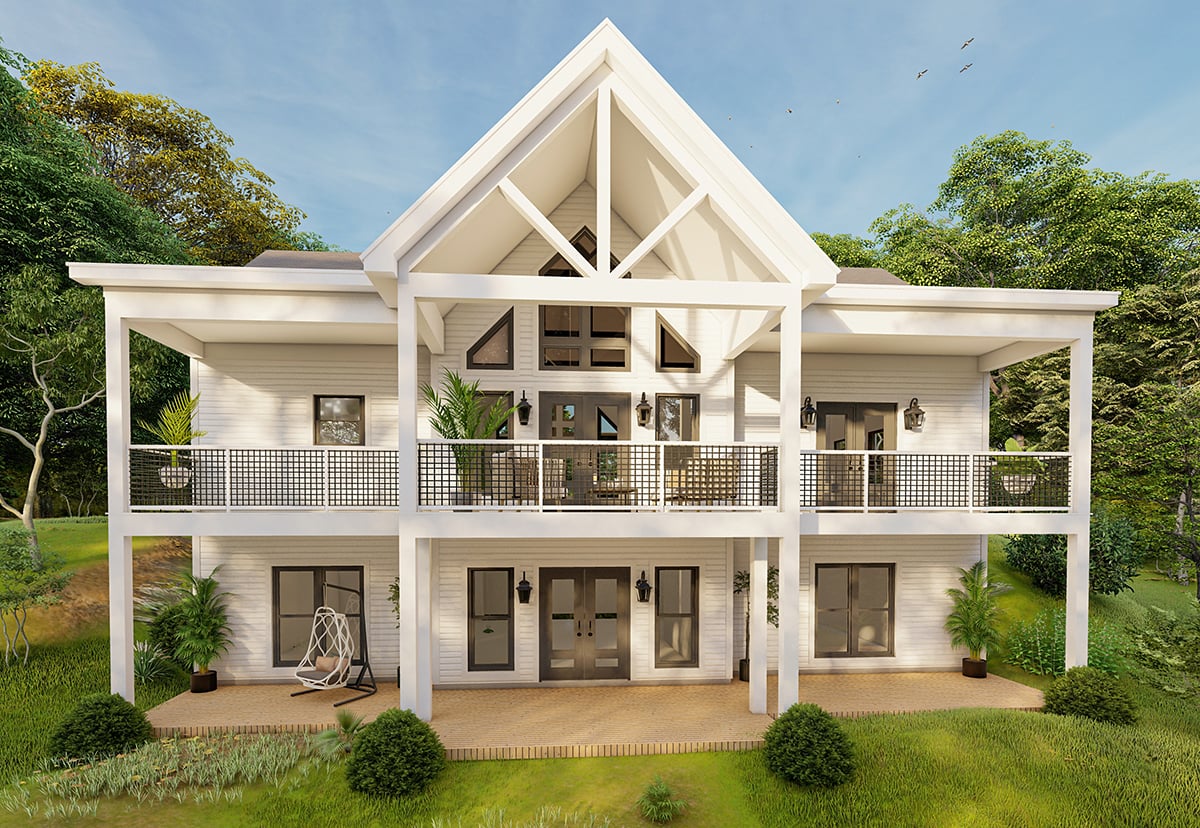

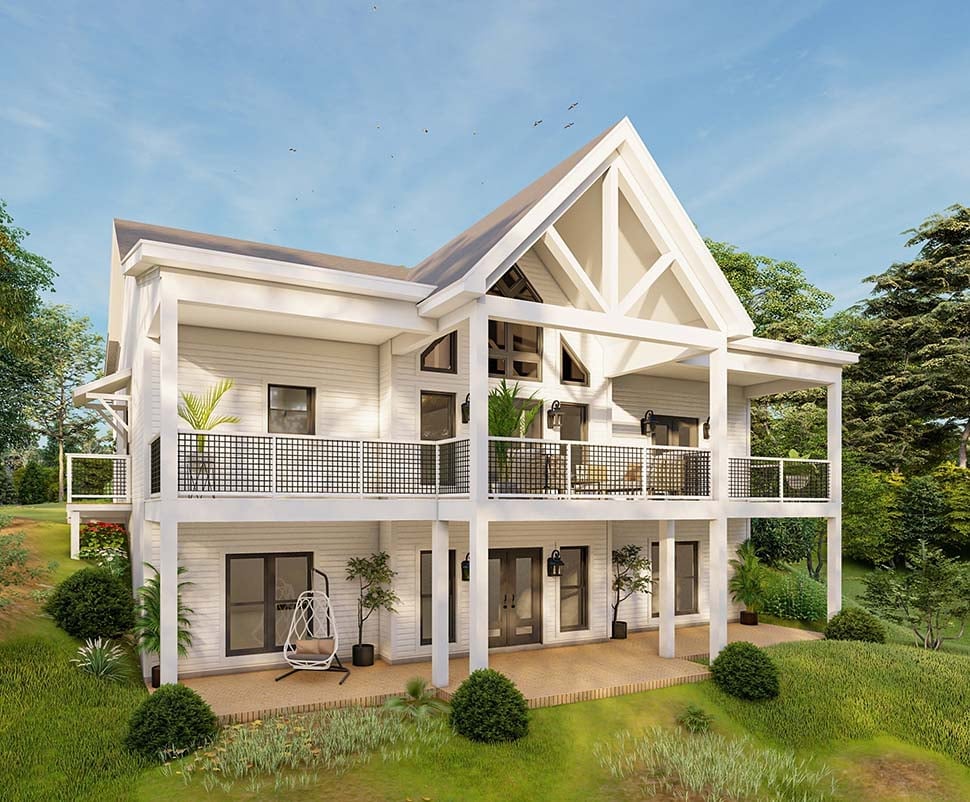

Bungalow House Plan 84816 is masterfully designed for the utmost appeal both inside and outside. Firstly, take a gander at the rear elevation which displays double the fun when it comes to outdoor living space. The lower level finished basement "walks out" to the rear porch. In size, this rear porch mirrors the square footage you find on the front porch. This is where you may set up a grill and prepare your outdoor banquet in the quiet, shaded privacy of your backyard. What else will you see? Does your property boast a lake or an ocean view?

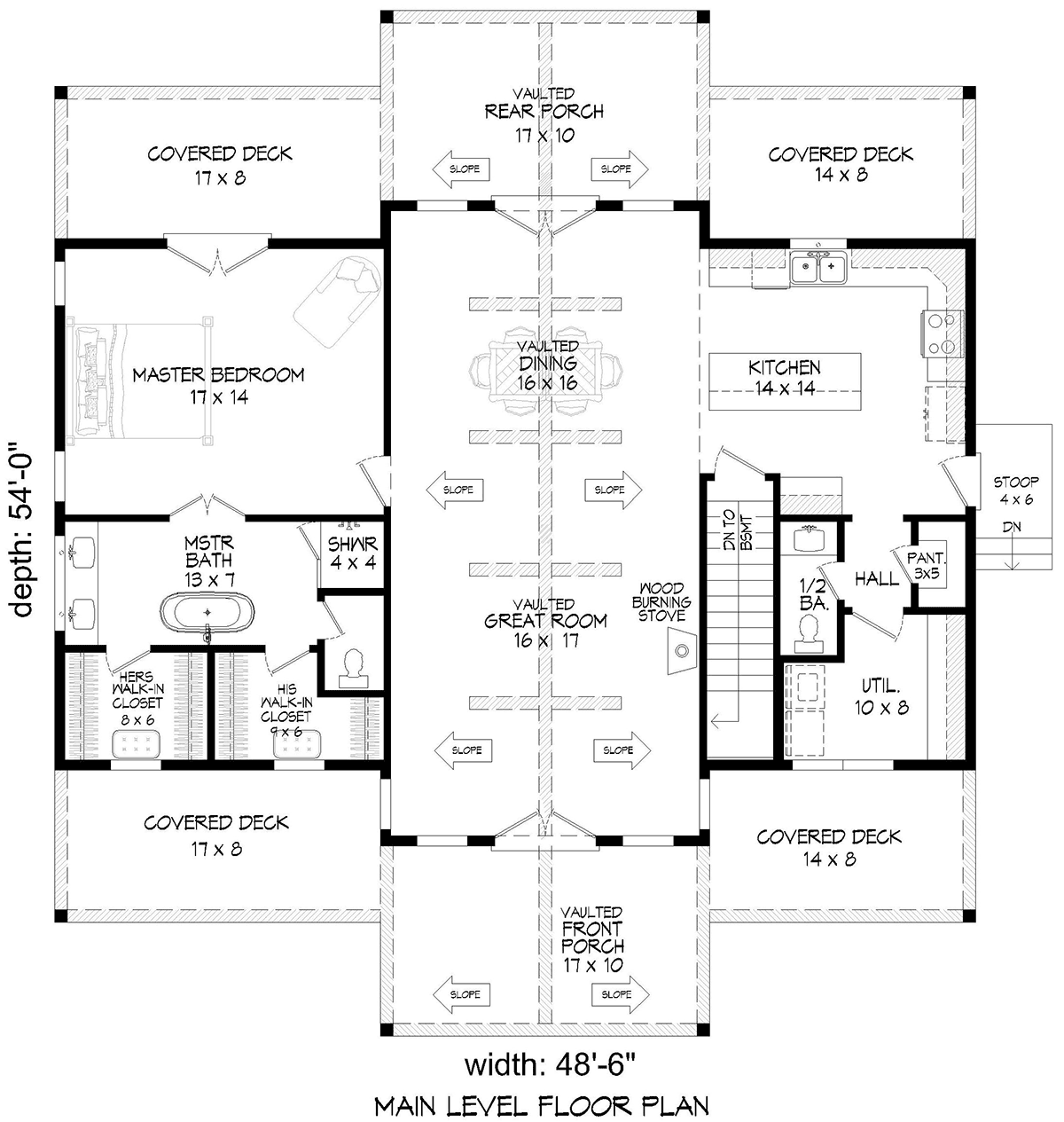

Secondly, the dramatic vaulted ceiling follows you inside and continues down the length of the house. Open the double front door and look up at the ceiling beams. The expansive open living space includes a wood burning fireplace in the living room area. Next, the floor plan shows the suggested location for your dining table. It's adjacent to the kitchen which is to the right side. Here, you will utilize the abundant counter space and the generous kitchen island. The kitchen also has access to the side door leading outside and to the basement staircase.

Main Floor Master Suite With TWO Closets

Thirdly, parents will choose this home because they will love the master bathroom. It's a main floor master measuring 17' wide by 14'deep, and it includes a double door for "private" access to the back covered deck. The bathroom has both his and her walk-in closets, walk-in shower, freestanding tub, private water closet, and two sinks. Going down, we find two children's bedrooms in the finished basement, and each has a very large walk-in closet at 6' wide by 12' deep. Best of all on this level is the family room which measures 17' wide by 33' deep. You will never run out of space when it comes to fun family activities!

Don't miss the other perks of the plan:

Large and accessible mechanical room in the basement.
Large Bath #2 with separation between sinks and private areas.
Main level laundry room with counter space for folding clothes.
Discrete half bathroom and a pantry near the side door.

What's Included?

Plans include

a: Floor Plans: House plan drawings indicating dimensions for construction
b: Roof Plan: Drawings indicating roof slopes and unique conditions
c: Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish
d: Building Sections: Drawings cut through important locations in the structure
e: Construction Details: Drawings showing specific construction of building elements at a large scale
f: Kitchen and bath elevations
g: Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
h: Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure CRAWLSPACE

Plans are sent in AutoCAD 2000 format

Modifications

Want to make changes to a house plan at Family Home Plans?

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. You will receive a FREE, no obligation, modification estimate to get exactly the home plan you've been dreaming of. Simply contact the modification department 1 of 3 ways:

Call 866-465-5866 and talk to a live person that can give you and FREE modification estimate over the phone!

Email Us - Please Include your telephone number, plan number, foundation type, state you are building in and a specific list of changes.

Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the FamilyHomePlans.com Modification Department.

Cost To Build

No Risk Offer: Order your Home-Cost Estimate now for just $24.95! We provide you with a 10% discount code in your receipt for when you decide to order any plan on our website that will more than pay you back!
Get more accurate results, quicker! No need to wait for a reliable cost.
Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
Cost report for your zip code. (the zip code can be changed after you receive the online report)
Estimate 1, 1-1/2 or 2 story home plans. **
Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
Your estimate is active for 1 FULL YEAR!

View Sample

demo purposes only

Purchase

$24.95 per plan

** Available for U.S. only.

QUICK Cost-To-Build estimates have the following assumptions:

QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.

Q & A

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.

FHP Low Price Guarantee

If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
