House Plan 94308
Contemporary Style with 1 Bed, 1 Bath
sq ft
659beds
1baths
1bays
0width
24'depth
40'
click for more images
Plan Pricing
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 659 sq ft |
| Main Living Area: | 511 sq ft |
| Upper Living Area: | 148 sq ft |
| Garage Type: | None |
| See our garage plan collection. If you order a house and garage plan at the same time, you will get 10% off your total order amount. | |
| Foundation Types: | Crawlspace |
| Exterior Walls: | 2x4 |
| House Width: | 24' |
| House Depth: | 40' |
| Number of Stories: | 2 |
| Bedrooms: | 1 |
| Full Baths: | 1 |
| Max Ridge Height: | 22' from Front Door Floor Level |
| Primary Roof Pitch: | 12:12 |
| Roof Load: | 40 psf |
| Roof Framing: | Stick |
| Porch: | 14 sq ft |
| Deck: | 280 sq ft |
| FirePlace: | Yes |
| Main Ceiling Height: | 8' |
Plan Description
The living room and the kitchen nook flow together to create a friendly, open living space. Sliding doors in the family room lead out to the rear patio for fair weather activities, while a fireplace can warm up those cold winter evenings. The bedroom enjoys ample closet space. And for further convenience, a sofa/sleeper has been built-in. This home is designed with a crawlspace foundation.
What's Included?
Exterior Elevations - A blueprint picture of all four sides showing exterior materials and measurements.
Floor plans - Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section - A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations - Detailed drawings of kitchen cabinet elevations and other elements as required.
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Previous Q & A
A: No, the space is only 4' wide.
A: There are five piers.
A: 1. The design 94308 is designed to be placed on a crawlspace foundation with continous spread footings and concrete walls. 2. There isn't a garage designed for it. 3. The cost of making modifications to the design is based upon $85.00 per hour. 4. The time is based on complexity of the modifications.
A: The plans are designed to meet the 2012 IRC, we will not guarante the plans will meet all codes, such as local energy codes.
The foundation is designed as a concrete grade beam and continous spread footer.
A: Yes
A: The glass above the doors are custom made and should be installed by a professional glazier. The foundation can be modified for sauna tubes(the design must be confirmed by a local engineer or building official). The height of the structure from the top of foundation is: 22'-0" +-. The interior walls are load bearing, and the plans are printed on 18"x24" sheets at a 1/4" = 1'-0" scale.
A: The rear are 6'-0"x4'-0" sliding windows and the front are 6'-0"x6'-8" sliding glass patio doors with field measured fixed glass installed above. These are generic sizes and can be selected from most window manufacturers.
A: Yes there are two 6068 sliding glass doors to the deck next to the kitchen and living room.
A: The roof beams are 3 1/8"x15" glu-lam beams with 2x10 rafters at 24" o.c. and are designed to carry a minimum live roof load of 40 psf., the insulation is R-30 batts.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Photographs may show modified designs.
Elevation

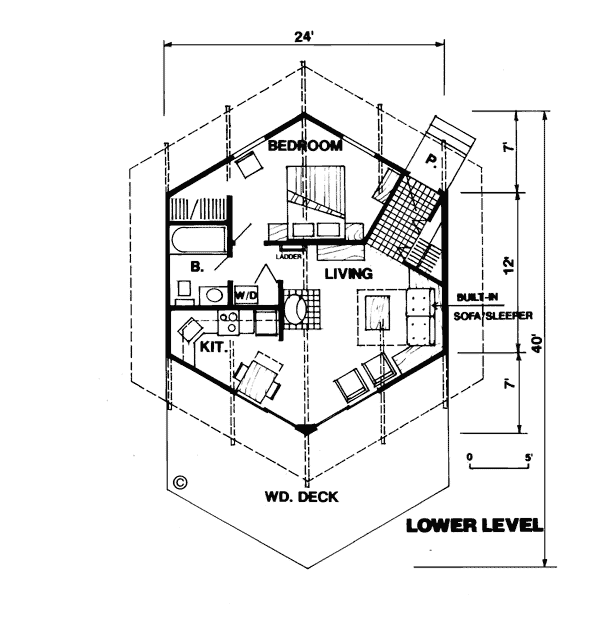

Level One

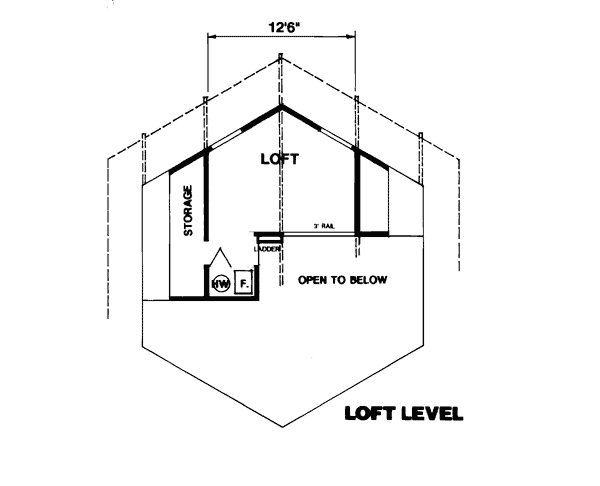

Level Two
Quick Specs
659 Total Living Area511 Main Level
148 Upper Level
1 Bedrooms
1 Full Baths
24' W x 40' D
Quick Specs
659 Total Living Area1 Bedrooms
1 Full Baths
24' W x 40' D
Pricing
PDF File: $990.005 Sets: $830.00
5 Sets plus PDF File: $1,240.00
CAD File: $1,390.00
more info
Rear Elevation
Photographs may show modified designs.
