Plan Pricing from $1,795.00

Plan Pricing

PDF File: $1,795.00
CAD File: $2,545.00
Single Build License issued on CAD File orders.
Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.

Right Reading Reverse: $350.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Need Printed Sets?

It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.

$95.00 to add a PDF File to a CAD file order. Call the sales office to add this option to your order.

Available Foundation Types:

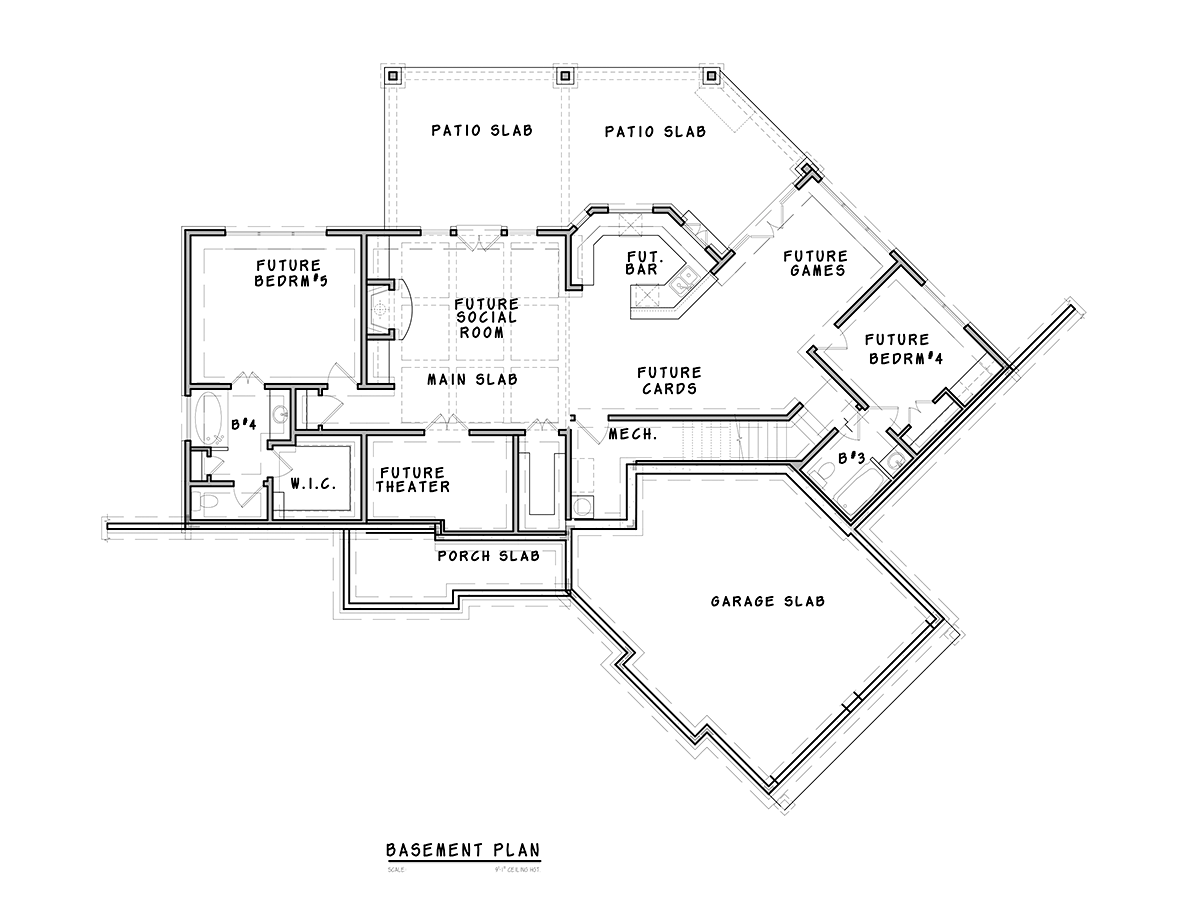

Basement : No Additional Fee
Total Living Area may increase with Basement Foundation option.
Crawlspace : No Additional Fee

Available Exterior Wall Types:

2x4: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

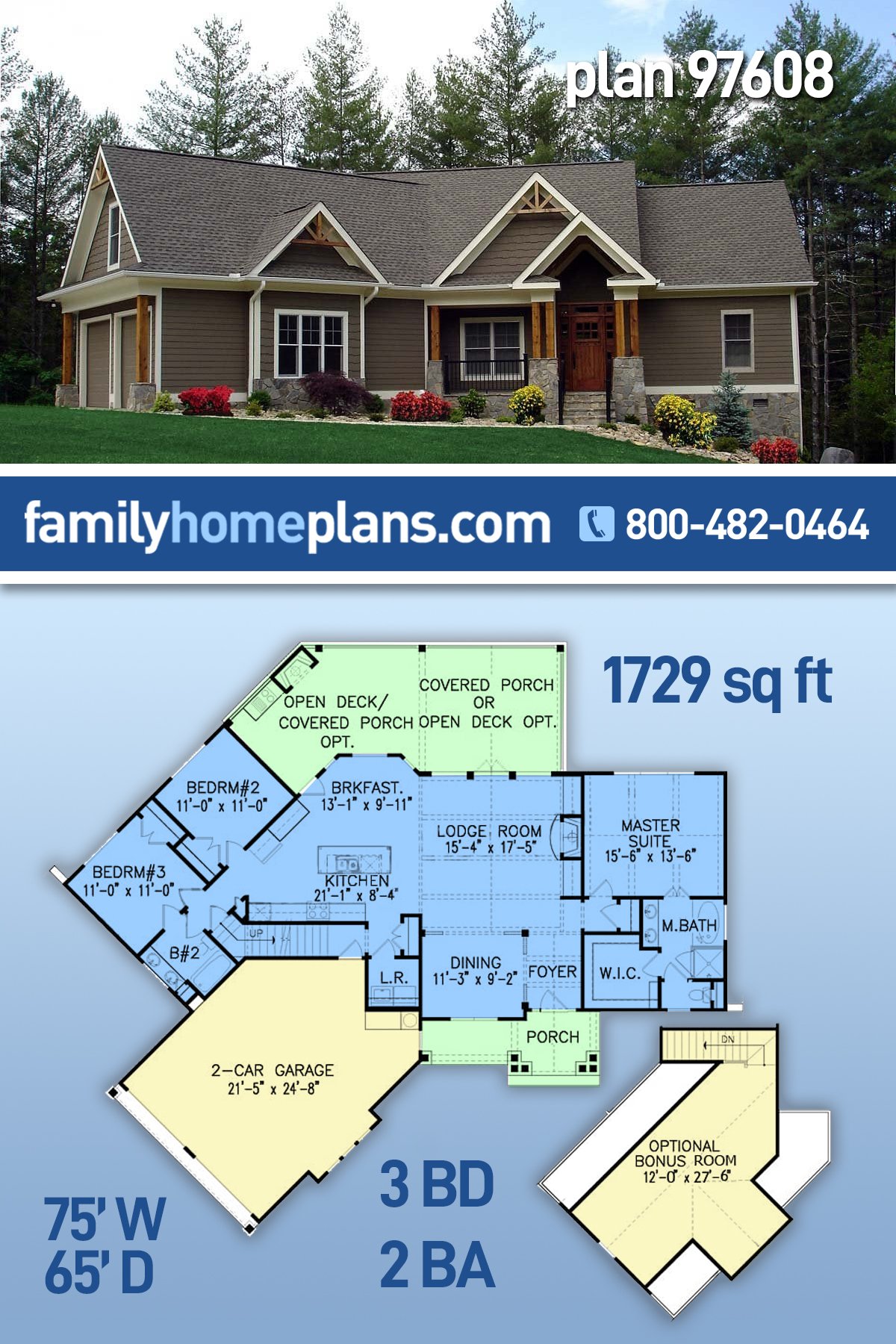

Total Living Area:	1729 sq ft
Main Living Area:	1729 sq ft

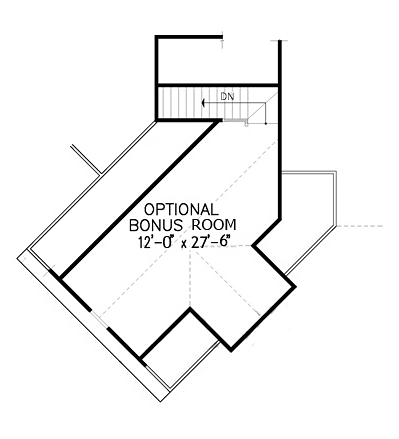

Bonus Area:	392 sq ft
Garage Type:	Attached
Garage Bays:	2
Foundation Types:	Basement Crawlspace
Exterior Walls:	2x4
House Width:	74'6
House Depth:	65'0
Number of Stories:	1
Bedrooms:	3
Full Baths:	2
Primary Roof Pitch:	10:12
Roof Framing:	Unknown
Porch:	584 sq ft
FirePlace:	Yes

* May require additional drawing time.

Special Features:

Deck or Patio

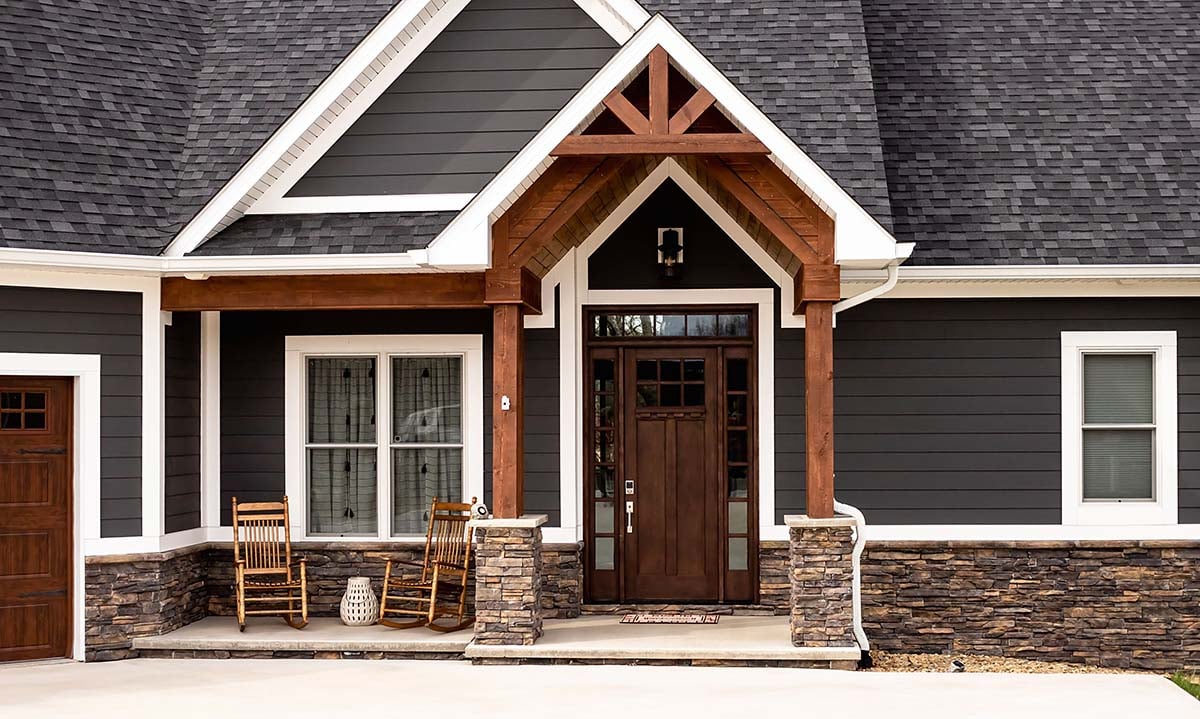

Front Porch
Outdoor Fireplace

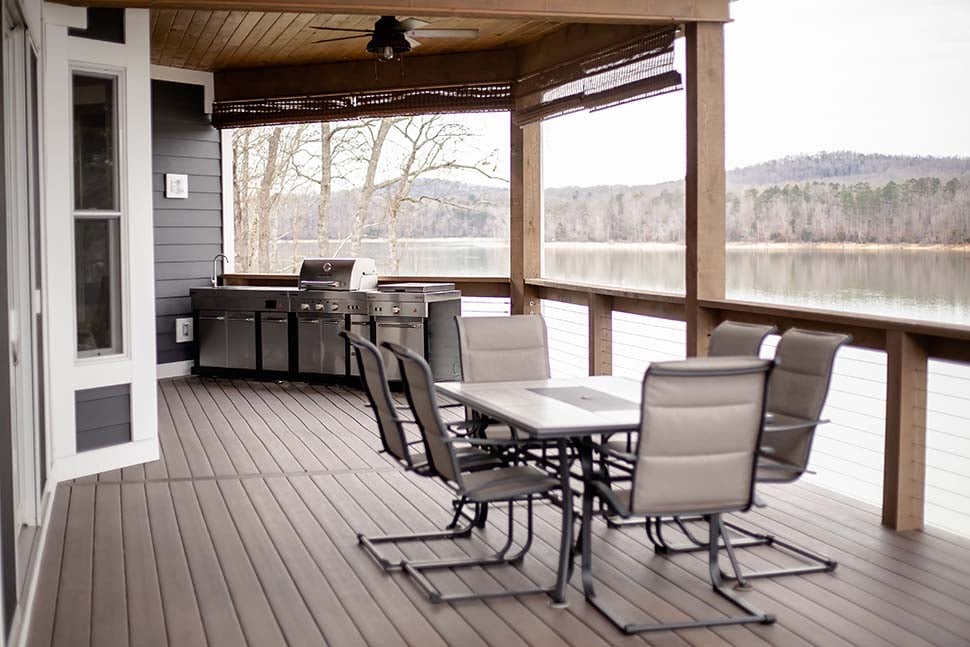

Outdoor Kitchen

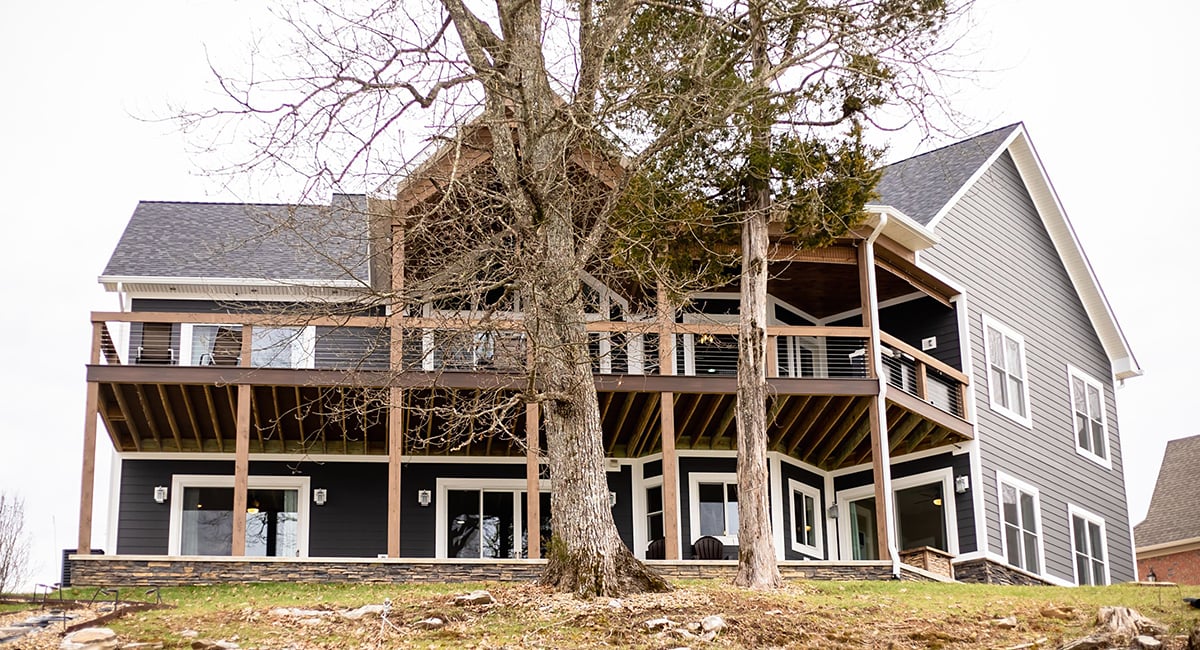

Rear Porch

Plan Description

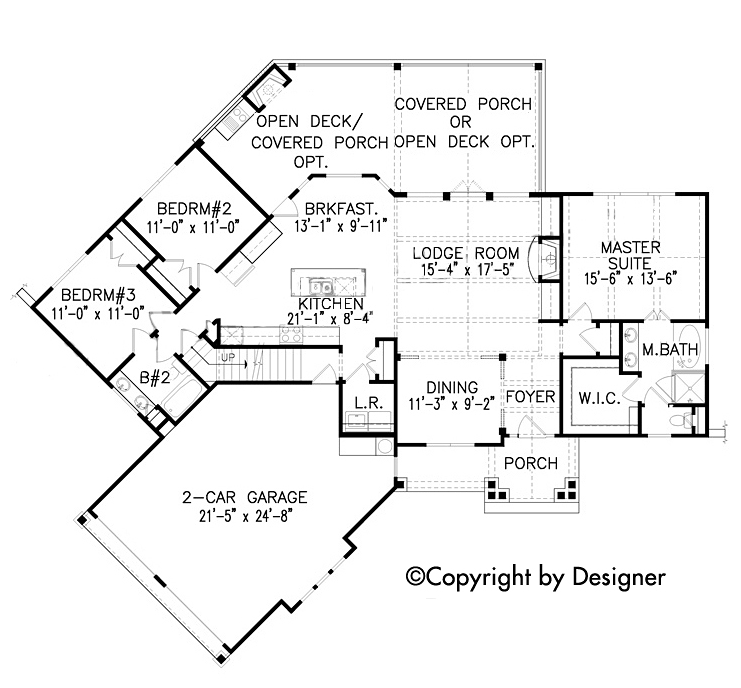

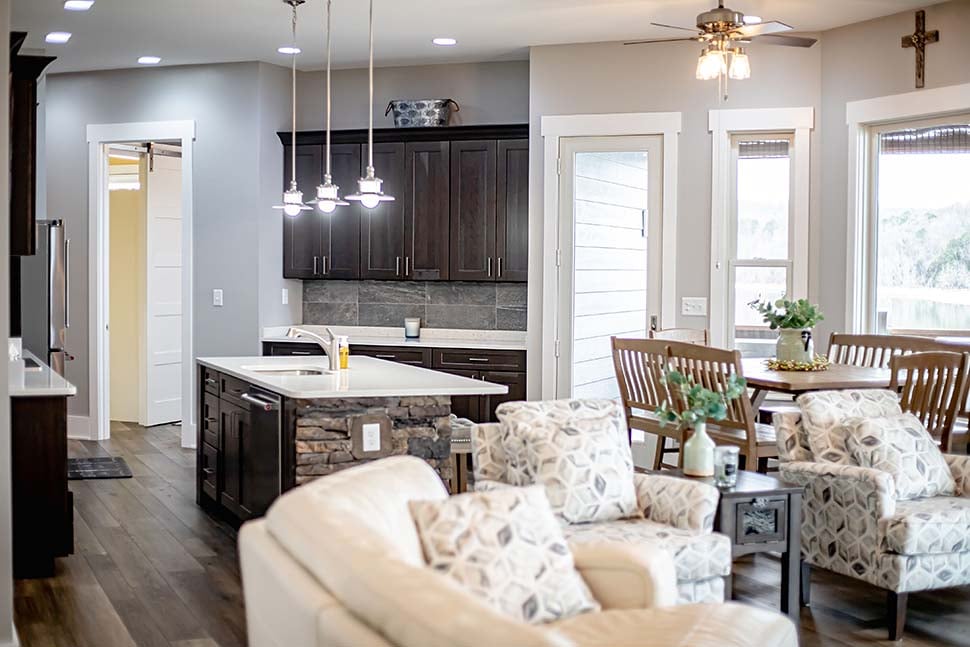

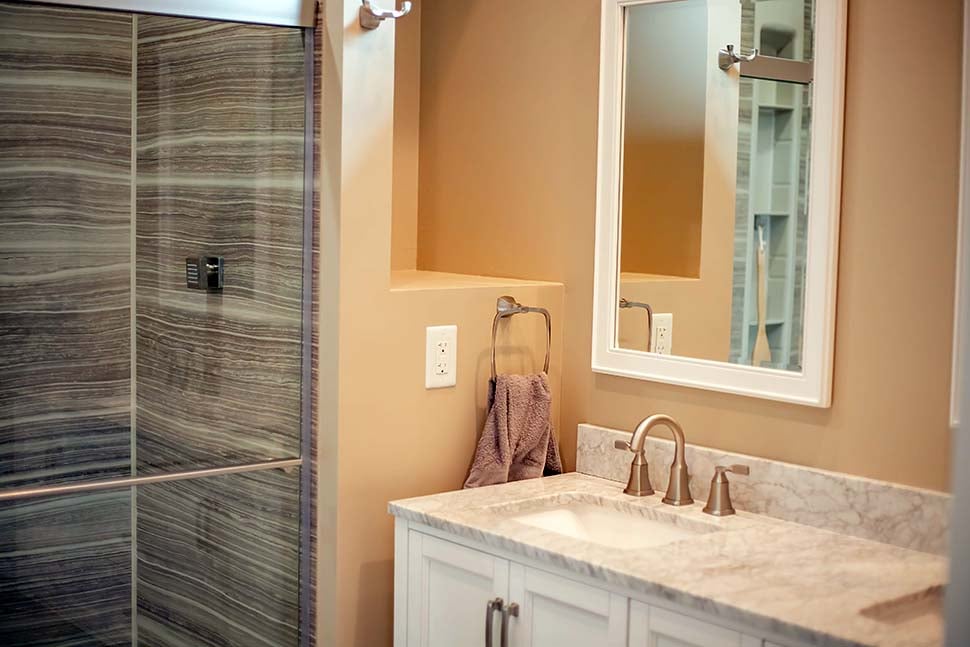

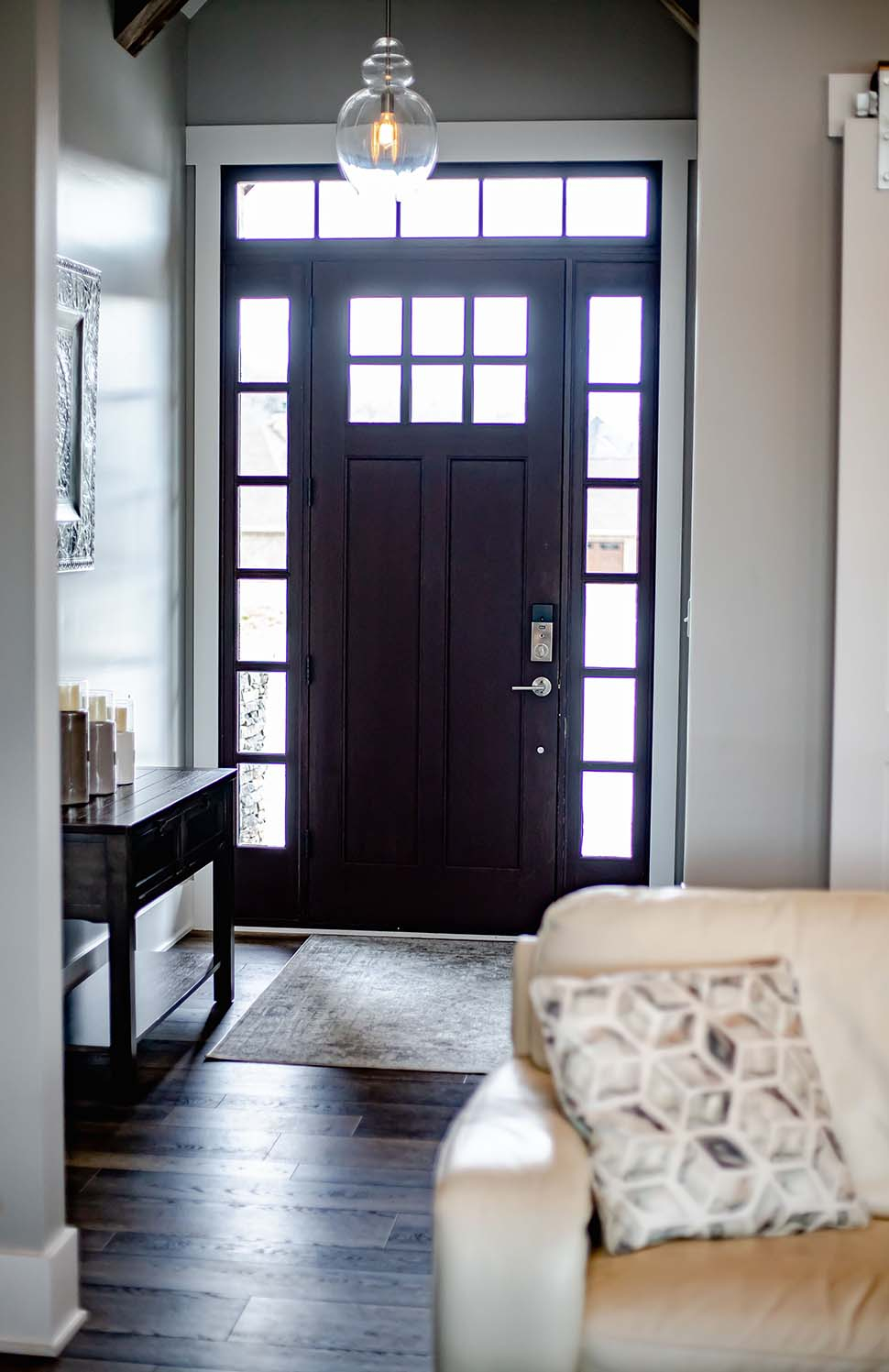

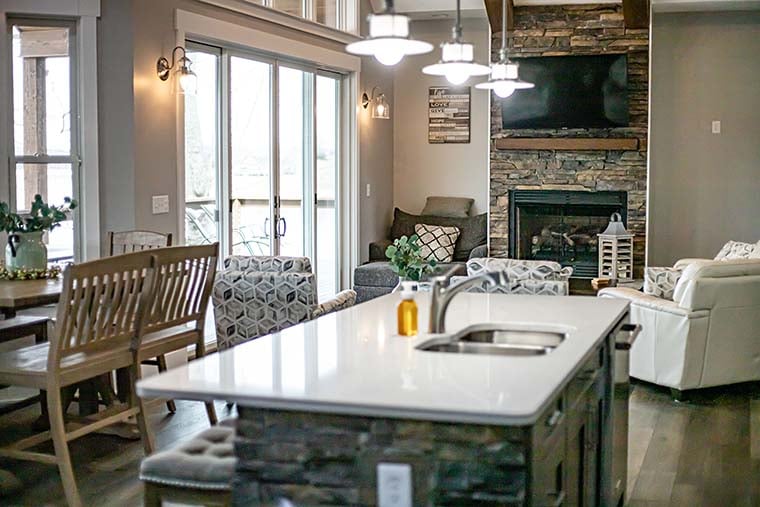

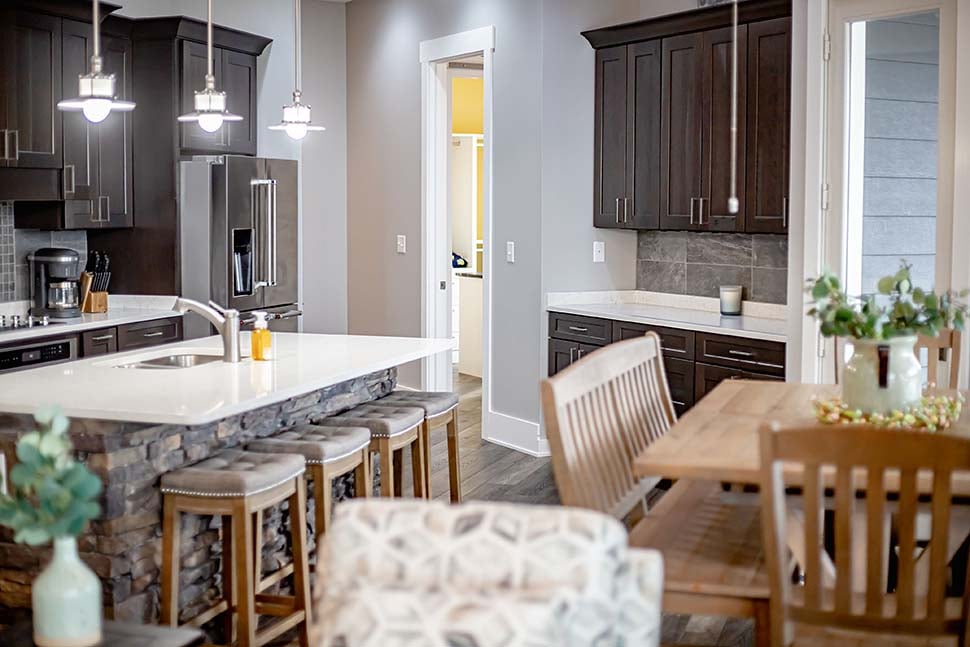

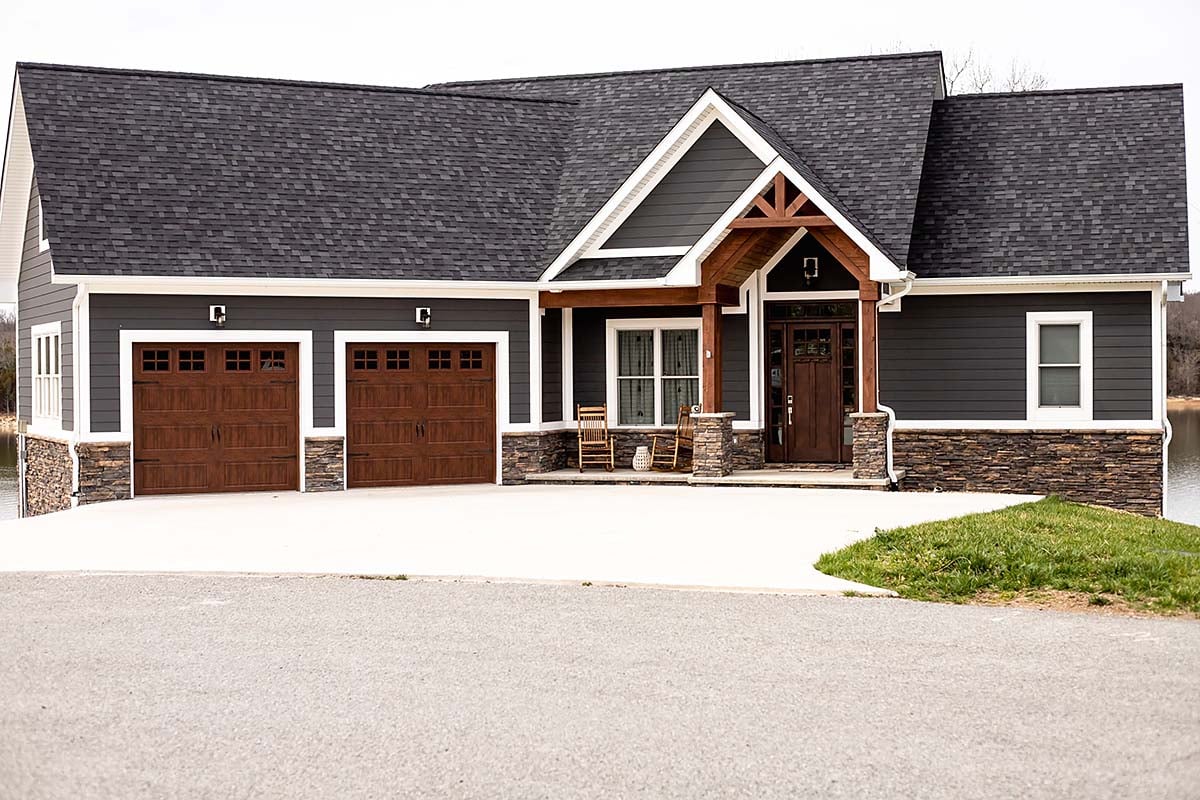

Spectacular outdoor views and an open floor plan are only a few special features in this charming cottage house plan. Upon entering this rustic home design, you are greeted by a vaulted ceiling in the foyer and lodge room. Timber trusses give this home a rustic feel while maintaining a functional floor plan. The open kitchen/ breakfast area is the perfect place for entertaining family and friends. Exit to the outdoor space from the breakfast area or lodge room and take in the magnificent views. This home design features a master suite which includes a luxurious bath and walk in closet. Two additional bedrooms with shared bath round out the first floor of this cozy ranch home plan.

What's Included?

1. Exterior elevations – Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.

2. Foundation Plan – Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.

3. Detailed Floor Plans – These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.

4. Interior Details – These drawings show the specific details and design of special interior features.

5. Roof Plan – Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.

6. Cross Section Details – Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.

7. Electrical – Electrical floor plan schematics for 1st and 2nd floors.

Modifications

Want to make changes to a house plan at Family Home Plans?

Receive a FREE modification estimate.

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!

We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.

Click to Email Us This is the best and quickest way to get a modification quote!

Please include your preferred Foundation Type and a Specific List of Changes. You can also attach a Sketch of Changes.

It's as simple as that!

Cost To Build

No Risk Offer: Order your Home-Cost Estimate now for just $24.95! We provide you with a 10% discount code in your receipt for when you decide to order any plan on our website that will more than pay you back!
Get more accurate results, quicker! No need to wait for a reliable cost.
Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
Cost report for your zip code. (the zip code can be changed after you receive the online report)
Estimate 1, 1-1/2 or 2 story home plans. **
Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
Your estimate is active for 1 FULL YEAR!

View Sample

demo purposes only

Purchase

$24.95 per plan

** Available for U.S. only.

QUICK Cost-To-Build estimates have the following assumptions:

QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.

Q & A

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Previous Q & A

Q: Hello! What's the roof pitch for this plan? Thank you! Donna

A: The main roof pitch is 10:12 and over the garage is 12:12.

Q: Does this come with the roof plan details, interior details (beam sizes for gables) , etc.)and door/window sizes?

A: Our plans are well dimensioned working drawing sets and do not include structural plans. A set will include front, rear, and side elevations, first floor, second floor, foundation plan, roof plan, schematic electrical plans, sections and details. All engineering must be completed by a local engineer and/or truss manufacturer/supplier. Truss manufacturers and suppliers typically supply engineered structural floor and roof framing plans at no charge if the framing materials are purchased from their respective companies.

Q: What are the ceiling heights in every room?

A: Hello Family Home Plans, The main overall ceiling height on the 1st floor is 10' for any areas that are not vaulted. The rooms that are vaulted show vault lines. Master suite, Lodge Room, Foyer & porches are vaulted. Everything else on the 1st floor is 10'.

Q: We love the design. Can you tell us if any of the ceilings are cathedral?

A: Foyer, Lodge Room & Master suite are all vaulted. Foyer = approx. 17'-5" Lodge Room = approx. 21'-4" Master Suite = approx. 17'

Q: Is the blueprint 18x24 or 24x36?

A: 24 x 36 Page size

Q: What are the dimensions of the laundry room?

A: The laundry room is 5'-8" x 5'-4". Thank you
